Product Introduction

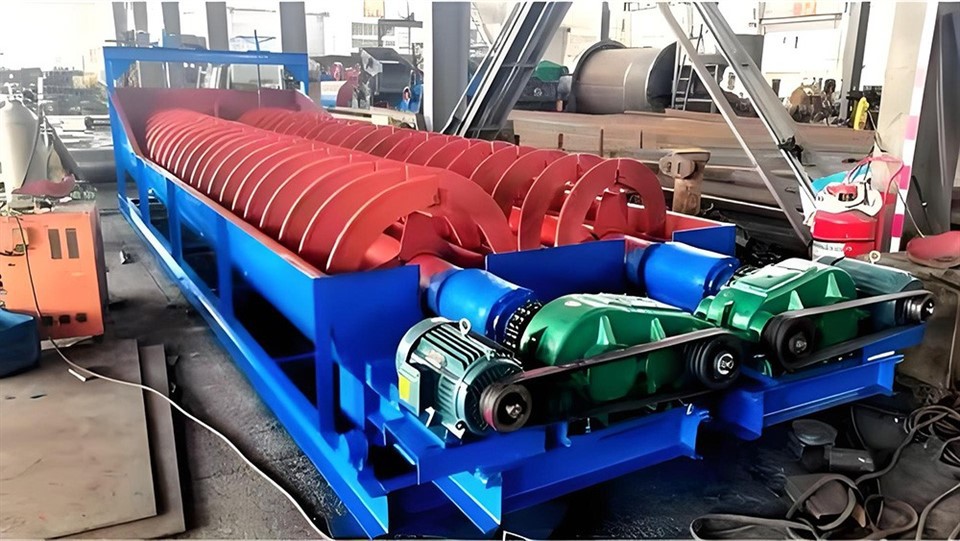

The Spiral Sand Washer, with its unique double or single spiral structure, can efficiently remove clay powder from the surface of sand and gravel through the full stirring of rotating blades and strong flushing of water flow. The equipment is specifically designed for processing materials with a particle size of 0-50 millimeters. The clay content of the finished sand and gravel is strictly controlled below 0.5%, and the stone powder content can be flexibly adjusted within the range of 3% -15%. All indicators meet the strict standards of GB/T 14685-2022.
Featuring an innovative design that combines deep-groove impellers with wear-resistant rubber linings, the single-unit hourly output can reach 5 to 240 tons. The fine sand loss rate is controlled within 5%, and it also has a remarkable water-saving effect, saving 30% more water compared to similar equipment. As a result, it has successfully set an industry benchmark in the cleaning of manufactured sand, river sand, and tailings sand.
Working principle

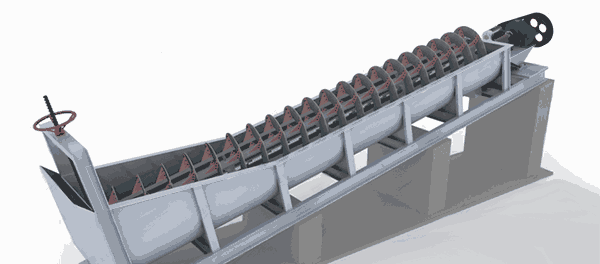

The Spiral Sand Washer is usually placed in an inclined state during installation. When the equipment is started, the motor drives the transmission device to operate, causing the screw to start rotating. The sand and gravel materials enter the cleaning tank from the feeding tank, and under the drive of the spiral, the sand and gravel continuously reverse, collide and grind with each other in the cleaning tank. During this process, impurities on the surface of the sand and gravel are removed, and the water vapor layer covering the sand particles is also destroyed, which is beneficial for subsequent dehydration operations.
Due to the rotation of the spiral and the gravity of the material itself, sand and gravel move from high to low in the cleaning tank. Throughout the entire process, clean sand and gravel enter the hopper from the rotating spiral blades, completing the cleaning operation. The sewage containing soil and impurities generated during the cleaning process is discharged through the overflow outlet and enters the subsequent sewage treatment system.
Structure of Spiral Sand Washer
Four core advantages
Deep Cleaning
By leveraging dual-spiral tumbling and water flow impact, the crushing rate of mud balls is increased by 40%, and the cleaning efficiency is 30% higher than that of bucket-wheel type cleaners. The smoothness of the finished sand meets the first-class construction standard.
Low Consumption and Durability
Featuring fully enclosed transmission and labyrinth sealing, the service life of the bearings is extended by 50%. The spiral blades, constructed from high-chromium alloy material, can be flipped and reused after one side wears out, reducing maintenance costs by 60%.
Intelligent Energy Conservation
Frequency conversion speed regulation (17–38 r/min) adapts to materials with varying mud contents. Energy consumption per ton of material is only 0.8–1.2 m³ of water plus 0.3 kW·h of electricity, and the sewage recycling rate exceeds 90%.
Convenient Operation and Maintenance
The modular design enables quick disassembly and assembly within 20 minutes. Thanks to the impeller-water-sand isolation structure, the failure rate is 70% lower than that of traditional equipment, with average annual downtime less than 20 hours.
Performance parameters
| Model | Feed size (mm) | Processing capacity (t/h) | Spiral diameter (mm) | Number of spirals (strips) | Tank length (mm) | Power (kw) | Dimensions (mm) |
| LX0920 | ≤10 | 30-60 | 920 | 1 | 8000 | 11 | 8710*1630*2080 |
| LX1120 | ≤10 | 40-80 | 1120 | 1 | 8000 | 18.5 | 9230*1840*2130 |
| LX1500 | ≤10 | 50-100 | 1500 | 1 | 8000 | 22 | 9620*2230*2480 |
| 2LX0920 | ≤10 | 60-120 | 920*2 | 2 | 8000 | 11*2 | 8710*2600*2080 |
| 2LX1120 | ≤10 | 80-160 | 1120*2 | 2 | 8000 | 18.5*2 | 9230*3050*2130 |
| 2LX1500 | ≤10 | 120-250 | 1500*2 | 2 | 8000 | 22*2 | 9620*3730*2480 |
Quality Commitment
Sturdy and Durable Frame Structure
The frame is constructed from high-strength Q235B thickened steel (with a thickness ranging from 10 to 16mm). Through professional stress relief processing, the anti-deformation performance of the frame is significantly enhanced, increasing by 50% compared to ordinary structures. This ensures that the equipment remains stable and reliable even under long-term heavy-duty operation.
Excellent Core Configuration in Quality
All core components of the equipment have passed the international authoritative ISO18802 certification. Key parts are equipped with high-quality imported bearings from brands such as SKF and FAG. With exquisite craftsmanship and strict standards, it guarantees an extremely long service life, maintaining stable operation for over 15,000 hours and greatly reducing the frequency of downtime for maintenance.
Intelligent and Efficient Operation and Maintenance System
It is standardly equipped with a PLC intelligent monitoring system, which is like the "intelligent brain" of the equipment. It conducts real-time monitoring of key parameters such as vibration and oil temperature, and immediately provides accurate early warnings in case of any abnormalities. It supports remote operation and maintenance functions, and the entire process from fault alarm to technical response takes no more than 30 minutes, providing strong protection for production.
-- Eliminate all impurities with the power of the spiral, and define the cleanliness standard with intelligent design.--
Manufacturer of spiral sand washing machine
Yonghua Machinery adopts advanced production technology and equipment to ensure the processing accuracy and quality stability of products. Fully understand the differences in production scale, material characteristics, site conditions, environmental requirements, and other aspects among different customers, and be able to provide personalized customized services for customers. Develop the most suitable Spiral Sand Washer solution for customers based on their specific needs.

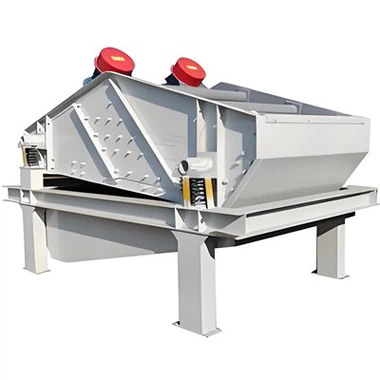

Hot Tags: spiral sand washer, China spiral sand washer manufacturers, suppliers, factory, Vibrating Dewatering Screen, sand making equipment, Fine Sand Recycling Machine, Spiral Sand Washer, Wheel Sand Washer
