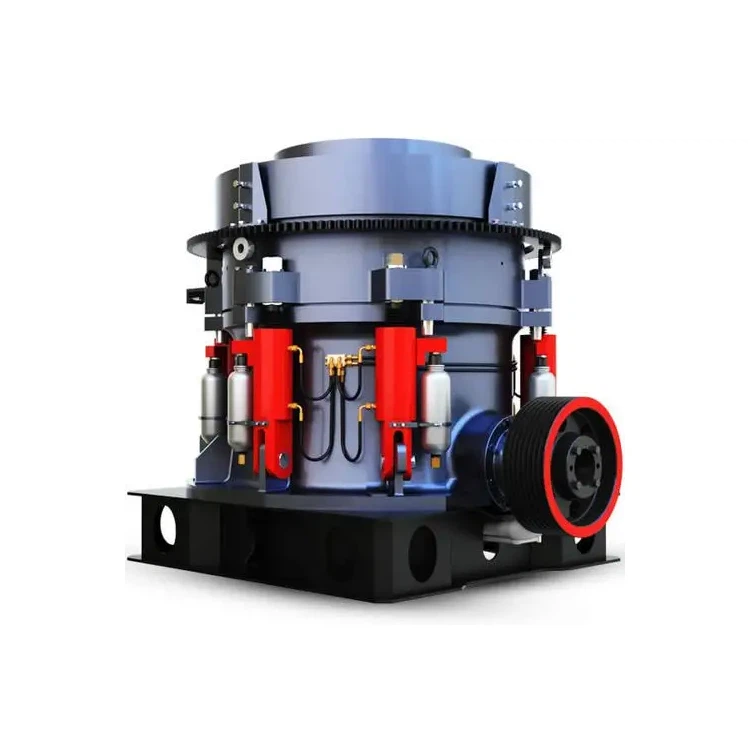

High-efficiency Multi-cylinder Hydraulic Cone Crusher

 Overload protection function: Buffer force is provided by multiple hydraulic cylinders (usually distributed around the frame). When encountering uncrushable materials (such as metal blocks), the hydraulic system automatically unloads to lift the moving cone, avoiding hard damage to the equipment. After troubleshooting, it can quickly reset and continue operation, reducing downtime by more than 50%.

 Dynamic adjustment of discharge opening: The hydraulic cylinder directly drives the fixed cone to lift, achieving stepless and precise adjustment of the discharge opening width (with an accuracy of up to 0.1mm). No manual adjustment is required, adapting to different finished product particle size requirements (e.g., adjusting from 30mm to 5mm only takes 5 minutes).

 Laminated crushing principle: The crushing cavity of the moving cone and fixed cone adopts a combination of "steep crushing wall + gentle mantle", where materials are subjected to multiple forces of extrusion, bending, and shearing in the cavity. This achieves inter-particle crushing instead of traditional "single-particle extrusion", resulting in better-shaped finished aggregates (cubic content ≥90%) and needle-like/flaky content below 5%.

 Multi-cavity adaptation: Provides multiple cavity modules such as coarse crushing (C cavity), medium crushing (M cavity), and fine crushing (F cavity). Operation modes can be quickly switched by replacing liners. For example, when switching from producing construction aggregates (medium crushing) to manufactured sand (fine crushing), there is no need to replace the entire equipment.

 PLC full-automatic control: Integrated with a programmable logic controller (PLC), it can real-time monitor equipment operation parameters (such as main shaft speed, hydraulic oil pressure, bearing temperature, motor current, etc.), and visually display them through a human-machine interface (HMI). It supports remote monitoring (e.g., viewing equipment status via a mobile phone APP).

 Adaptive adjustment technology: Built-in intelligent algorithms automatically adjust the moving cone speed (driven by a variable-frequency motor) according to the feed volume and material hardness. For example, when the feed particle size suddenly increases, the system automatically reduces the speed to increase torque, avoiding stalling while maintaining stable production capacity.
