Technical Specifications

Model	CC-100	CC-200	CC-300
Capacity	100TPH	200TPH	300TPH
Engine	Tier 4 Final (194kW)	Tier 4 Final (298kW)	Tier 4 Final (391kW)
Weight	32T	45T	58T
Dimensions	12×2.5×3.2m	14×2.8×3.5m	16×3×3.8m

Core Features

Track Configuration:

500mm wide rubber tracks (ground pressure <0.6kg/cm²)

30° climbing capability

Automatic tension adjustment

Smart Control:

Automatic feed regulation
Remote monitoring (4G/5G)
Self-diagnostic system

Crusher Options:

Type	Feed Size	Output Size	Power
Jaw Crusher	≤650mm	50-150mm	90-160kW
Impact Crusher	≤500mm	0-40mm	132-250kW
Cone Crusher	≤300mm	5-30mm	150-315kW

User Evaluation

We've been using this mobile crusher in our quarry for over a year, and it has been extremely reliable. It rarely breaks down, and when it does, the troubleshooting guide provided by the manufacturer helps us resolve issues quickly. The high - crushing ratio means we can process more materials in less time, increasing our profitability.

I'm impressed by the versatility of this mobile crusher. We've used it to crush limestone, granite, and even demolition waste. The machine's stability during operation is remarkable, even on uneven terrain. The after - sales service is also excellent; the technicians respond promptly to any inquiries and provide helpful solutions.

The build quality of this mobile crusher is outstanding. It has withstood the harsh conditions of our open-pit mine without any major issues. The remote control feature is a huge plus, allowing operators to work safely from a distance. Our production has improved significantly since we started using it, and I'm very satisfied with this investment.

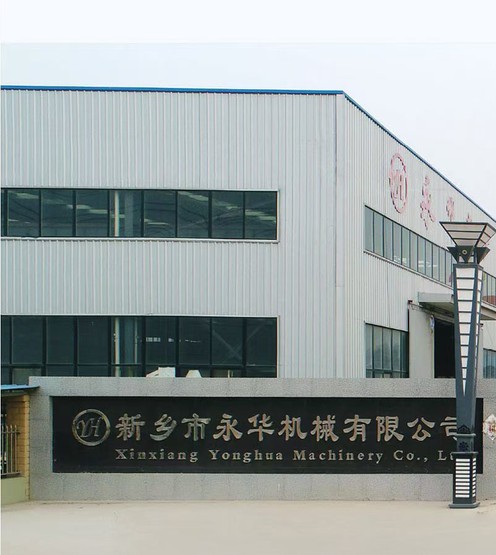

Our factory

Zero Setup Time

Crushing within 15 minutes of arrival

Fuel Efficiency

25% lower consumption with ECO mode

Space Saving

Compact footprint (50% smaller than wheeled models)

Why Choose Our Crawler Mobile Crusher?

Conquer Any Terrain

Rubber tracks with 0.6kg/cm² ground pressure for soft/sloped surfaces
30° climbing ability and 400mm ground clearance
1.2km/h self-propelled speed with 4.5m turning radius

Works Where Others Can't

No need for haul roads or site preparation
Ideal for confined urban demolition sites
Permits not required for most relocations

Precision Engineering

≤3mm closed-side setting adjustment (cone models)
360° impact crusher rotor for consistent cubical output
Automatic tramp iron protection

Operator Protection

85dB noise level (industry quietest)
Emergency stop at ground/crusher levels
Automatic fire suppression system
